Test Method on Add-on SKXBEE

1. Configure the ATMY 1111 to SKXBEE for the robot and ATDL 1111 to SKXBEE for computer using X-TCU (refer User’s manual for SKXBEE section 6.2 for more detail on configuration).

2. Plug in the SKXBEE to the robot and switch ON the power, select “SKXBEE.”

3. Connect another SKXBEE on computer.

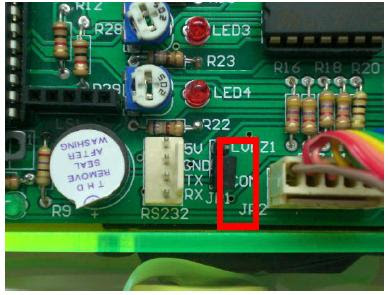

4. Make sure JP1 jumper is connected to COM for UART as shown in Figure.

5. Open X-TCU and click on the terminal, type “d”.

6. Now, user may control the robot using Num pad. 8 to move forward, 4 to turn left, 6 to turn right, and 2 to move backward.
